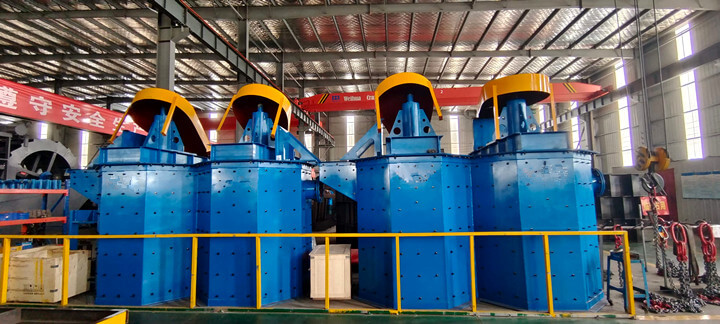

Attrition Cell Scrubbers

Attrition Cell Scrubbers provide slurry scrubbing solutions by the action of the slurry particles impacting one another. The raw material will be scattered and contaminants be removed from surface of sand and other granular materials.

LDHB Attrition Scrubbers contain a compact design, robust construction and high throughputs with efficient slurry mixing,the attrition scrubbers can also be ganged together in flexible layouts to achieve fully slurry scrubbing.

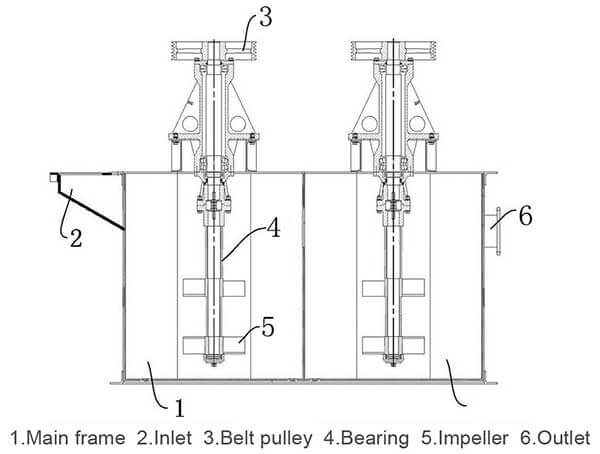

How Attrition Cell Scrubbers Work?

Attrition Scrubbers usually provide most powerful scrubbing action at densities of 70%-80% solids by weight. When working, slurry enters the scrubber cavity through the feed pipe, and produces severe turbulence under the strong agitation of impeller. The ore particles have great momentum in them and produce intense friction and collision with each other.
The impurity membrane wrapped on the surface of ore is easily peeled off the mineral surface by friction and impact due to its low strength. The cement surface is immersed in water and then the mineral particles are strongly rubbed and collided with each other to loosen and disintegrate, thereby achieving the separation of clay and ore.

These impurities and clay are disintegrated and exfoliated into the slurry, and the slurry can be separated by subsequent desliming. In the actual production process, different agents should be added according to the actual conditions of mineral.

Features

1.Large scrubbing intensity and good effect. The unique tank structure and impeller configuration increase the scrubbing strength by about 30% compared to the conventional scrubber of the same specification.
2.Capacities ranging from 2-100 T/H
3.Low power consumption, wear and corrosion resistance. Rubber-lined for wear protection.
4.Simple structure, large effective volume, small floor space. Designed for easy drive removal for quick maintenance.
5.Variable speed options, low circumferential speed and long service life.
6.Available in 2-, 4- or 6-cell configurations.

Specifications

Model Impeller diameter (mm) Volume (m³) Feed size (mm) Capacity (t/h) Power (kw) Weight (kg) Overall size (mm)
CX0.25-1 240 0.25 ≤10 2-10 3 350 710*708*1310
CX0.25-2 240*2 0.25*2 ≤10 2-10 3*2 660 1365*708*1310
CX0.5-1 320 0.5 ≤10 5-20 5.5 450 922*886*1550
CX0.5-2 320*2 0.5*2 ≤10 5-20 5.5*2 890 1761*886*1550
CX1-1 480 1 ≤10 10-40 15 1400 1180*1142*2057
CX1-2 480*2 1*2 ≤10 10-40 15*2 2410 2276*1142*2057
CX2-1 520 2 ≤10 20-70 30 3300 1597*1597*2775
CX2-2 520*2 2*2 ≤10 20-70 30*2 6210 3075*1597*2775
CX4-1 770 4 ≤10 40-100 55 7500 1900*1752*3470
CX4-2 770*2 4*2 ≤10 40-100 55*2 14560 3712*1752*3470
