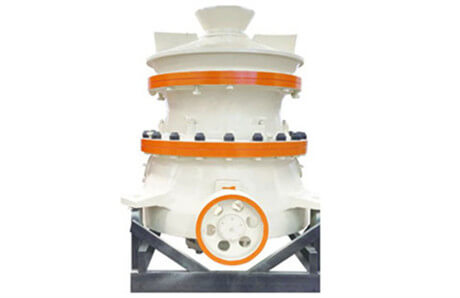

Single-cylinder Cone Crusher

Single cylinder cone crusher is a traditional and stable crushing equipment. It can be used for medium and fine crushing operations. The cone crusher adopts the design principle of combination of lamination and high energy. It has an optimized crushing cavity and has the characteristics of large crushing ratio, high efficiency, low energy consumption, uniform product particle size, etc.

Application: widely used in metal and non-metal mines, cement, sand and gravel, metallurgy and other industries

Applicable materials: River pebble, granite, basalt, limestone, quartzite, diabase, iron ore, gold mine, copper mine, etc。

How Single-cylinder Cone Crusher Work?

When single cylinder cone crusher works, the motor drives the transmission shaft rotate through the pulley and the V-belt. The transmission shaft lets eccentric bush rotate through the large and small gears. The movable cone makes a rotary movement under the force of the eccentric bush through the main shaft, making the movable cone and fixed cone sometimes close to or sometimes far from concave. The material can be crushed after being extruded and impacted in crushing chamber between the concave and the mantle, and the broken materials are discharged from the lower port.

Features

High reliability: optimize and improve product structure, material, processing and assembly process.

High production efficiency: reasonable crushing cavity, eccentricity, dynamic cone swing frequency, larger throughput, good product particle shape and low energy consumption.

Wide adaptability: concrete foundation or steel structure foundation can be used. It can be used in fixed and mobile occasions. It is flexible and convenient to meet the use requirements of customers in different occasions;

Convenient maintenance: most parts can be disassembled and assembled at the upper and side parts, which can reduce labor intensity and improve construction effect;

Specifications

RGP100S stroke discharge opening(c.s.s)
20mm 25mm 30mm 35mm 40mm 45mm 50mm
16mm 80-90 105-115 120-130 135-145 145-165 155-175
20mm   120-130 145-155 160-180 170-200 185-215
25mm     185-195 200-220 210-230
RGP100S stroke discharge opening(c.s.s)
20mm 25mm 30mm 35mm 40mm 45mm 50mm
18mm   170-190 170-210 190-230 210-255 235-275 255-295
25mm     220-270 255-315 290-345 320-350 330-350
32mm       360-400 380-420 400-440
40mm         450-500 480-530
RGP100S stroke discharge opening(c.s.s)
45mm 50mm 55mm 60mm 65mm 70mm 75mm
18mm 300-350 325-375 375-425 400-450 425-475 450-500 500-550
25mm   500-550 550-600 600-650 650-700 700-750 750-800
32mm   650-700 700-750 750-800 825-875 900-950
40mm       900-950 970-1050
