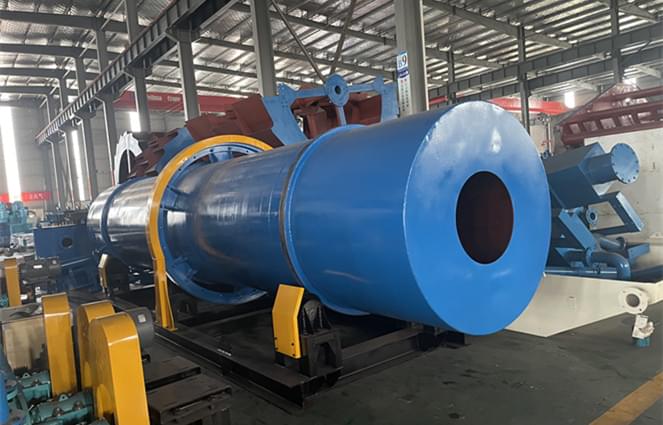

Trommel Scrubbers

LDHB Trommel scrubbers are a kind of cylindrical drum type material scrubbers used to wash ores in industries such as metal, metallurgy and mining.

LDHB Trommel Scrubbers are divided into two types: cylinder type and cylinder + trommel screen type. The trommel screen type scrubbers are able to effective crush the clay lumps and make the raw ore to be in complete looseness in the scrubber part, and remove the useless stones at once at the end screening part.

How Trommel Scrubbers Work?

The cylinder is supported by 4 supporting wheels. When working, The motor drives the reducer, and supporting wheels drive the scrubbing cylinder to rotate in a low speed.

Materials with clay plums or powder are fed into the rotating cylinder through feeding chute, and effectively washed under the function of the blades which are installed on the inner cylinder wall in a certain angle, and scrubbered repeatedly by forward or reverse water flow.

Features

1.Designed for large-sized mining gravels in heavy-duty construction.
2.Support rollers and thrust wheel assemblies.
3.Polyurethane screen panels for screening part.
4.Tire drive or chain drive options available.
5.Includes feed, oversize and product chutes.
6.Long drum design with more vigorous scrubbering for complete separation.

Specifications

Model Maximum feed size (mm) Cylinder diameter (mm) Cylinder length (mm) Drum speed (r/min) power (kw) Capacity (t/h)
GTX1530 50 1500 3000 30 55 70-140
GTX1836 80 1800 3600 25 75 120-200
GTX2145 150 2100 4500 21 110 180-250
GTX2450 200 2400 5000 18 160 230-300
GTX2760 250 2700 6000 16 220 280-420
GTX3075 300 3000 7500 15 370 400-500
