600m³/h river sand processing solution in Australia

The Australian customer produces river sand. He has a flow rate of 600m³ per hour. We need help to extract sand from river water. After analyzing the customer's material, we put forward a reasonable solution to get qualified products.

Material Analysis Report:

material report

Base on this sieving report:

* 0.075 to 2.36mm over 95%
* As earlier purpose: to find a system that would work to remove the 20 to 25% sand from the dredge to shore line
* Flow: 600m³/h

river-sand-processing

Our river sand processing suggestion:

1.To reduce the water content, increase sand percentage from 20% to 50%.

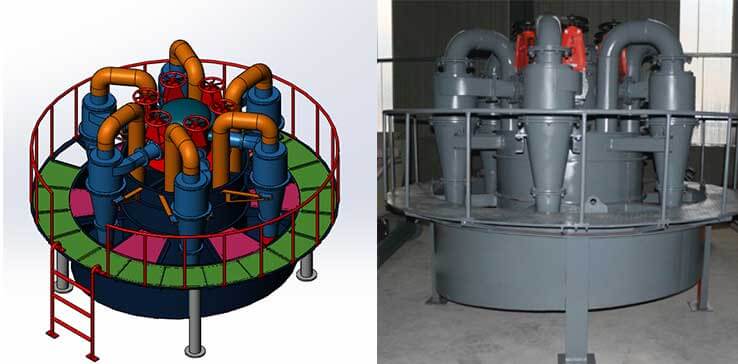

2.Cyclone set FX350-6 (combine with 6pcs FX350 cyclone, each can process feed flow 100m³/h, over 75% water flow away).

hydrocyclone

3.The concentrated sand around 120m³/h flow onto dewatering screen, one set ZSD1842 is enough to meet all the needs.

ZSD1842-dewatering-screen
