How to Design Deep Cone Thickener

Designing a deep cone thickener is a process that requires careful consideration of several factors such as the nature of the material to be processed, the desired throughput rate of the thickener, the available space for installation, and the operational cost. In this article, we will outline the key steps involved in designing a deep cone thickener and highlight some of the best practices and considerations that can ensure a successful design.

Step 1: Understand the Thickening Process

The first step in designing a deep cone thickener is to understand the thickening process and the factors that affect its efficiency. Thickening is the process of separating solids from liquids by increasing the concentration of solids in the slurry. This is achieved by settling the solids under gravity in a tank or a vessel. However, the settling rate of the solids depends on various factors such as particle size, shape, and density, as well as the concentration and viscosity of the slurry.

deep-cone-thickener1

Deep cone thickeners are designed to improve the settling rate of very fine particles by using a steep cone angle of between 45 and 60 degrees. The conical shape of the tank ensures that the solids settle quickly, while the bottom of the tank is designed to facilitate the removal of the thickened slurry.

Step 2: Determine the Material Properties

The second step in designing a deep cone thickener is to determine the material properties of the slurry. This includes the concentration and viscosity of the slurry, as well as the particle size distribution and the settling characteristics of the solids.

The concentration and viscosity of the slurry will determine the required settling area, volume, and height of the thickener. The particle size distribution will affect the settling rate of the solids, while the settling characteristics will affect the sedimentation velocity and the underflow density.

Step 3: Calculate the Required Dimensions

Once the material properties have been determined, the next step is to calculate the required dimensions of the deep cone thickener. This includes the cone angle, the diameter of the thickener, the height of the cone, and the height of the tank.

The cone angle is typically between 45 and 60 degrees, with a larger angle resulting in a higher underflow density but a slower settling rate. The diameter of the thickener is determined by the throughput rate and the required retention time. The height of the cone is determined by the required area for settling and the height of the tank is determined by the required volume.

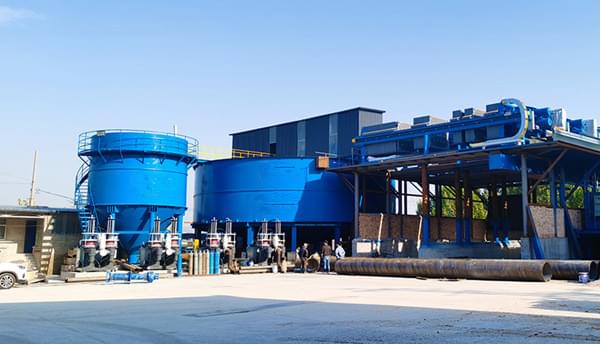

deep-cone-thickener31

Step 4: Design the Mechanical Components

The mechanical components of the deep cone thickener include the rake mechanism, the feedwell, the overflow and underflow systems, and the support structure. The rake mechanism is used to stir the slurry and remove the settled sludge, while the feedwell is used to distribute the slurry evenly and prevent the formation of turbulence.

The overflow and underflow systems are designed to control the flow of slurry and ensure that the thickener operates at the desired level. The support structure is designed to support the weight of the tank, the slurry, and the mechanical components.

Step 5: Select the Operating Parameters

Finally, the operating parameters of the deep cone thickener must be selected to ensure that the thickener operates efficiently and reliably. This includes the feed rate, the rake speed, the underflow density, and the flocculant dosage.

The feed rate must be controlled to ensure that the throughput rate does not exceed the design capacity of the thickener, while the rake speed must be optimized to ensure that the settled solids are removed efficiently. The underflow density must be maintained to ensure that the sludge is suitable for further processing, while the flocculant dosage must be optimized to improve the settling rate of the solids.

Designing a deep cone thickener requires a thorough understanding of the thickening process and the material properties of the slurry. By following the steps outlined in this article and considering the best practices and considerations, engineers can ensure that their deep cone thickener design is efficient, reliable, and cost-effective.
