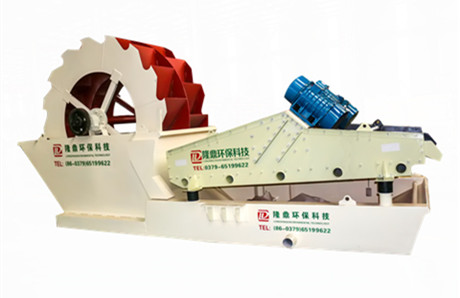

Sand Washing With Dewatering Machine

Sand washing with dewatering machine is a special equipment developed by LDHB aiming at the problems of poor quality of sand (such as water content, large amount of mud, much dust, difficult and easy removal of impurities, etc.) and poor washing and selection effect of sand washing machine equipment, which can effectively solve the problems of poor sand.

The equipment is used in wet sand production line of legal system, the combination of sand washer, dewatering screen two equipment characteristic advantage, both washed sand and gravel material dewatering function, can make wash out sand cleaner, effective solution to wash the battlefield sand wet and silt content, dust, impurity problem, belongs to the new environmental protection sand washing equipment.

How sand washing with dewatering machine work?

Structure: it is composed of dewateringscreen, wheel bucket, cleaning box, reducer, motor, vibration motor and other components.

Working principle: the sand-water mixture enters the cleaning tank of the sand washer, and is filtered and sorted through the wheel bucket screen, and then falls into the dewateringscreenfor dewatering treatment to remove a large amount of water in the sand.


1. Sand washing and dewatering machine integrated sand washing machine, dewatering screen two kinds of equipment advantages and characteristics.

2. Greatly reduce the sand in the mud, water, dust, impurities and so on, improve the sand and the price.

3. Energy saving and environmental protection, low energy consumption.

4. The whole machine installation, convenient and fast transportation.

5. Low failure rate and long service life.


Model Power (kw) Feed size (mm) Production (t/h) Weight (kg) Overall Dimension (L*W*H)(mm)
XS1026 9.9 ≤10 30-50 5180 6022*2150*2730
XS1630 19.4 ≤10 50-120 7300 7200*2900*3070
XS2036 24.5 ≤10 120-180 9450 7200*3000*3600
